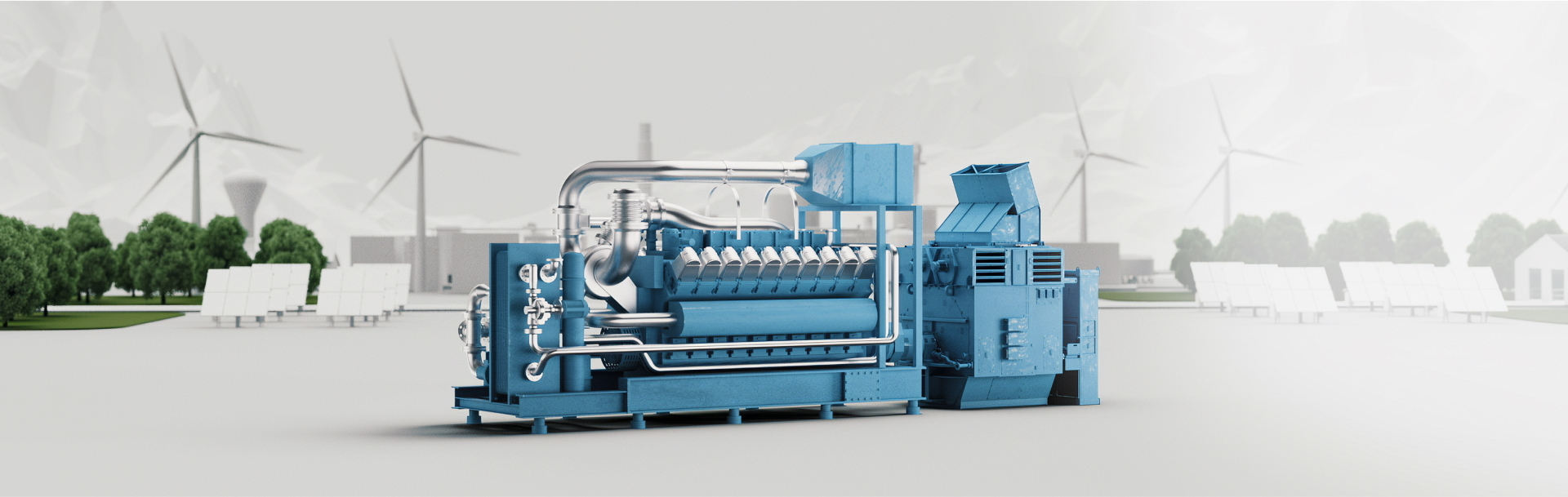

Designed in conjunction with some of our major customers, the Modular Synchronous Generator delivers superior efficiency and full grid-code compliance. Its modular design enables easy inertia upgrades with optional flywheels, while innovations like advanced cooling boost performance and reliability.
With a global product and manufacturing footprint, our efficiently managed logistics ensure shorter supply chains, saving both time and cost. Built-in manufacturing redundance across 2-3 factories guarantees reliable delivery and business continuity.
Designed in partnership with major customers, the ABB 20 MW class Modular Synchronous Generator meets today’s grid code requirements.
The modular synchronous generator features an upgraded cooling unit with up to 60% more air flow than provided by traditional cooling arrangements. This translates to a higher efficiency by:
reducing unnecessary fan power consumption adapting cooling to actual operating conditions preventing thermal inefficiencies
One or two flywheels to add high inertia and fast response to ensure grid compliance and help to balance reliable power generation.
The flexible, modular design supports a wide range of applications, from frequent cycling to continuous base-load, while enabling high efficiency and grid support. It can also be configured as a synchronous condenser for dynamic reactive power and fault response, enhancing grid stability.
Power ISO 9001 ISO 14001 CE-Marking
30 years 80,000 starts per lifetime
Power Generation Marine Chemical, Oil & Gas Mining and Minerals
Generating-sets Synchronous condensers
Modular synchronous generator

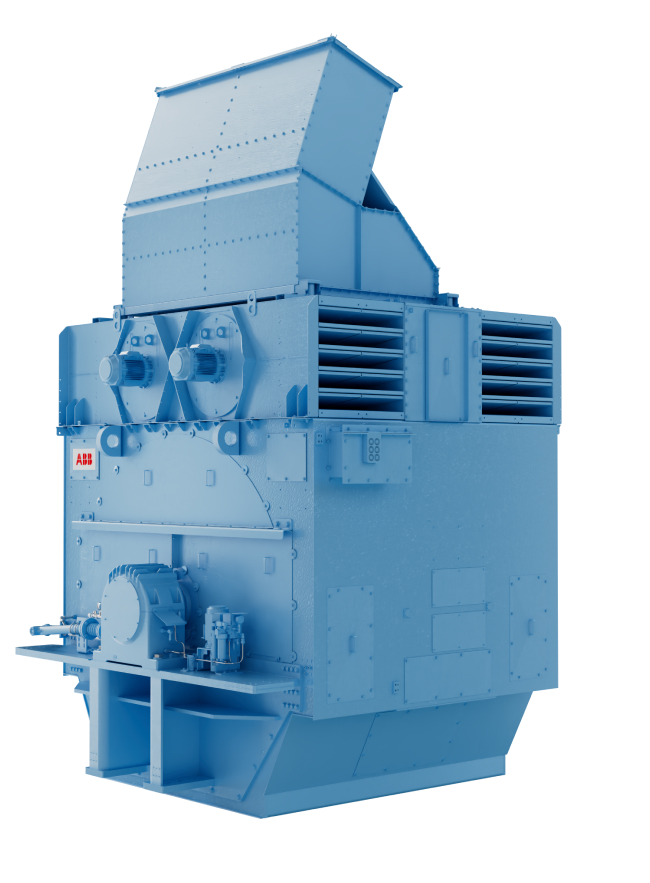

Standards: IEC 60034, ISO 8528 Duty: Balancing to continuous Power Range: 18...25 MW Voltages: Up to 15 kV Temperature rise class: B or F Insulation class: F Frequency/Speed: 50 Hz/60 Hz, 500/514/600 rpm IP/IC: IP23/IC0A6 Inertia constant: Up to 2,5 sec Starts and stops/year: Up to 4,000
